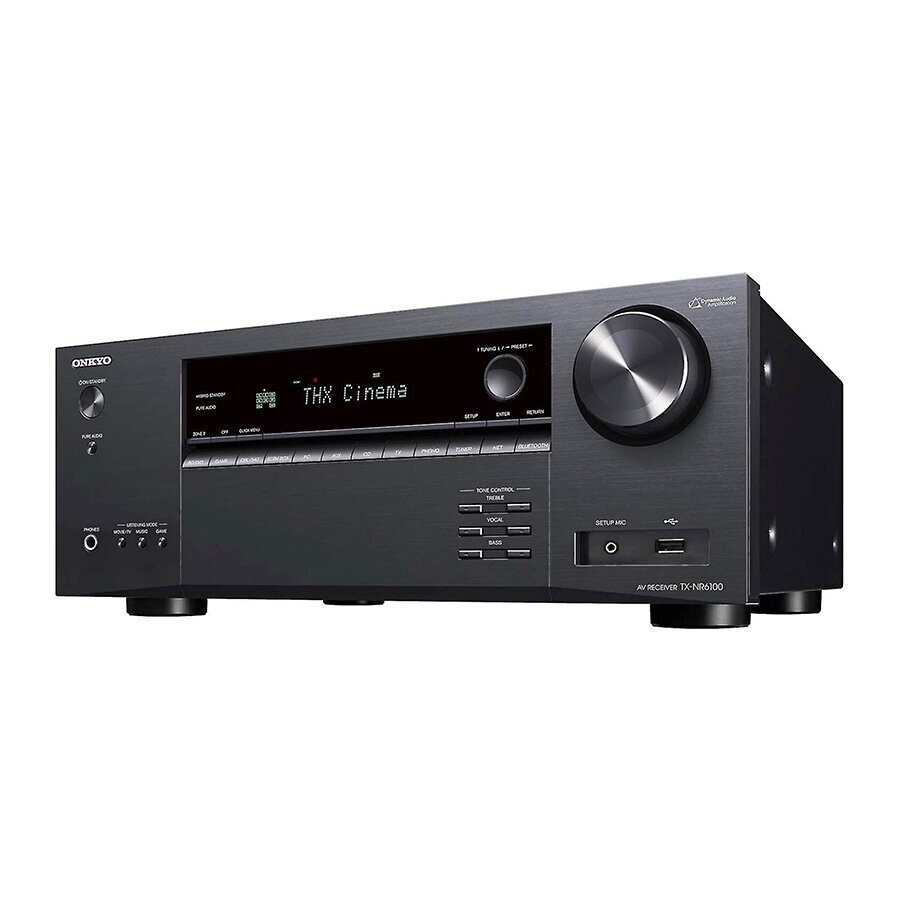

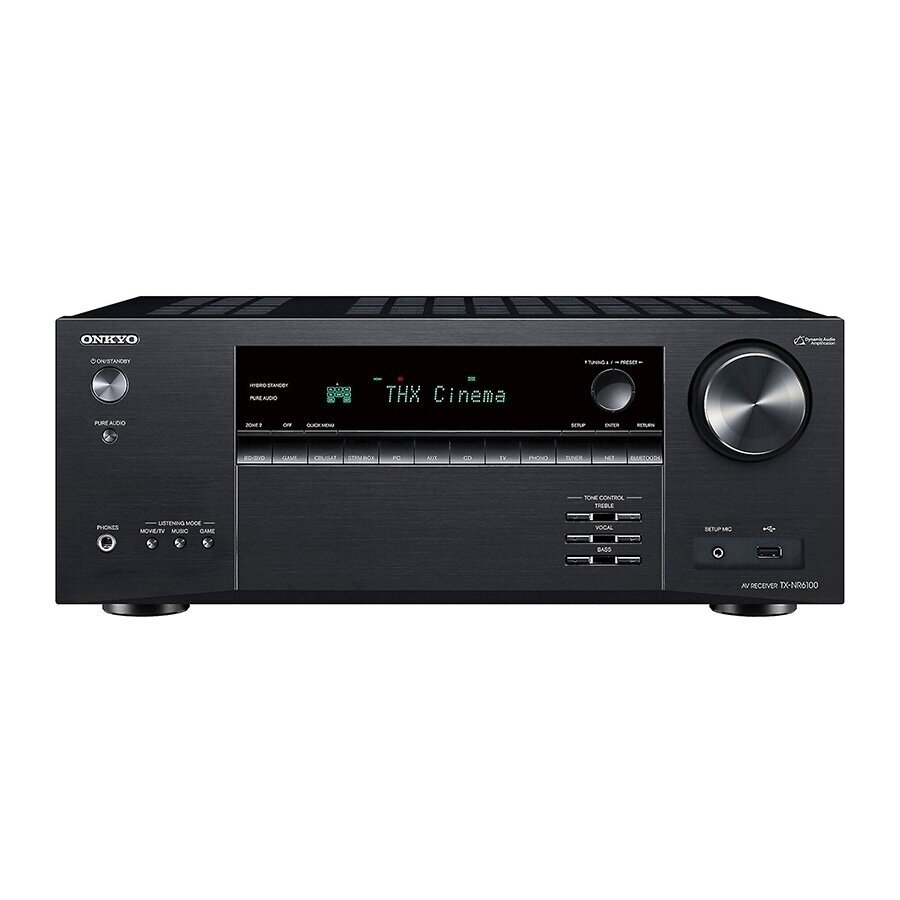

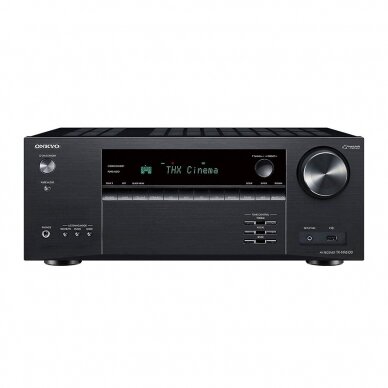

TX-NR6100 7.2 A/V stiprintuvas

TX-NR6100 7.2 kanalų tinklo AV imtuvas iš Onkyo, kaip pagrindinis jūsų namų pramogų sistemos elementas, gali pristatyti aukščiausios kokybės vaizdo, garso ir žaidimų turinį jūsų namuose. Garsas ir vaizdo įrašai yra išskirtiniai, nes TX-NR6100 gavo THX Select sertifikatą, kuris užtikrina teatro garso ir vaizdo tikslumą. Tai papildo HDMI 2.1 palaikymą ir visus jo teikiamus vaizdo ir žaidimų privalumus. Jūs netgi galite padalinti turinį į dvi savo namų zonas.

Techniniai duomenys:

Channels: 5.2.2
Power Output per Channel: 1-Channel Driven: 210 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 100 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel: 240 W at 3 Ohms (Front) 210 W at 4 Ohms (Front) 120 W at 8 Ohms (Front)
Frequency Response: 10 Hz to 100 kHz +1 dB (Direct, Pure Mode)
THD+N: 0.08% (20 Hz to 20 kHz, Half Power)
Speaker Impedance: 4 to 16 Ohms
Tone Control: Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB
Audio Processing
DTS Compatibility: DTS:X
Dolby Compatibility: Dolby Atmos
Auro 3D Support: No
Video
Pass-Through Support: 4K120p
Upscaling: None
Connectivity

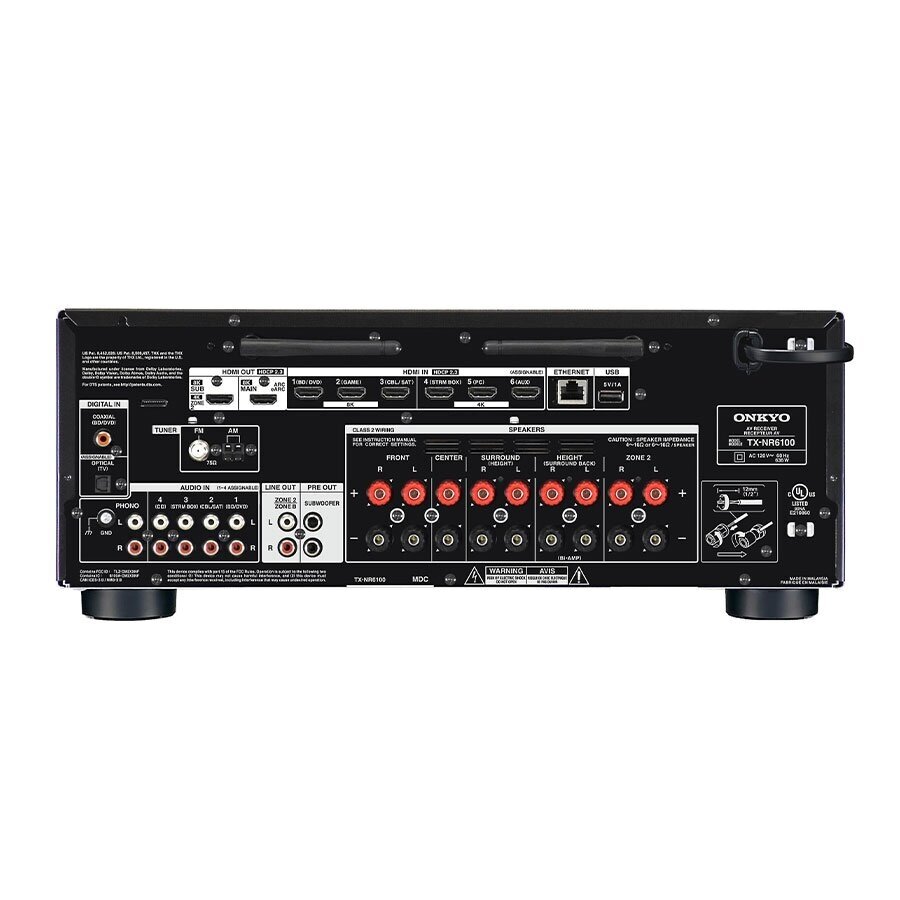

Rear A/V Inputs: 3 x HDMI 2.1 3 x HDMI 2.0 4 x RCA 1 x Stereo RCA (Phono) with Ground Screw 1 x Optical TOSLINK 1 x Digital Coaxial
Rear A/V Outputs: 1 x HDMI 1 x HDMI Zone 2 1 x RCA Zone 2 / Zone B Line-Out 2 x RCA Subwoofer Pre-Out
Front I/O: 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Microphone Input 1 x USB Type-A Input
Other Rear I/O: 1 x FM Coaxial F-Type Input 1 x AM Block Input 1 x RJ45 (Ethernet) Input/Output 1 x USB Type-A (Power) Output
Speaker Connectors: 7 x Binding Post Pairs
HDCP Support: Version 2.3
HDMI Compression Modes: 4K120AB / 8K60AB
Audio Return Channel (ARC): ARC, eARC
HDMI CEC: Yes
Media Card Slot: None
Bi-Amp Capability: Yes
Input Impedance: Line: 47 Kilohms Phono (MM): 47 Kilohms
Input Sensitivity: Line: 200 mVrms Phono (MM): 3.5 mVrms
Rated Output / Impedance: Subwoofer Pre-Out: 1 Vrms / 470 Ohms Zone B / 2 Line-Out: 200 mVrms / 470 Ohms
Signal to Noise Ratio: Line: 106 dB (IHF-A) Phono: 80 dB (IHF-A)
Wireless Connectivity
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Supported Audio Codecs: AAC, SBC, aptX, aptX HD
Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi
Control
Virtual Assistant: Works with Alexa, Works with Google Assistant
Tuner Section
Tuner Type: AM, FM
Number of Tuner Presets: 40 Stations
Radio Frequencies: AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz
Power
AC Input Power: 120 VAC, 60 Hz
Power Consumption: Active: 635 W No Sound: 65 W Standby: 0.1 W
Physical
Dimensions (W x H x D): 17.1 x 6.8 x 14.9" / 435.0 x 173.5 x 379.5 mm
Weight: 21.6 lb / 9.8 kg
Packaging Info
Package Weight: 25.855 lb
Box Dimensions (LxWxH): 20.8 x 18.3 x 10.1"
