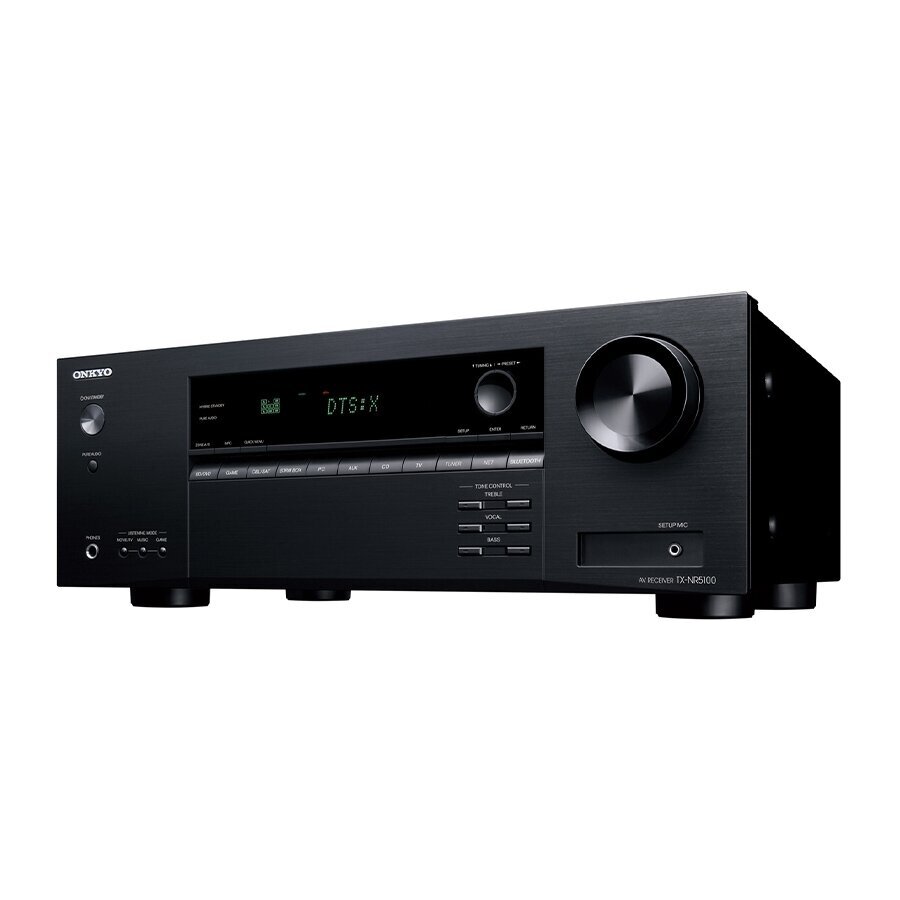

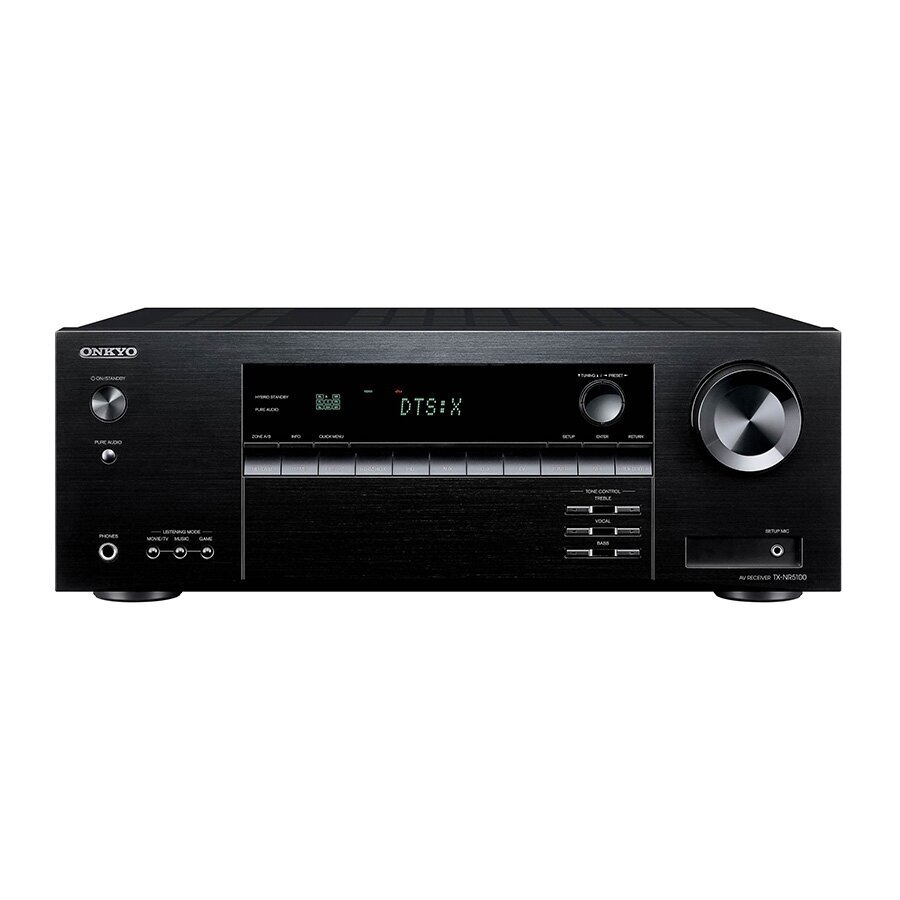

TX-NR5100 7.2 A/V stiprintuvas

TX-NR5100 7.2 kanalų tinklo AV imtuvas iš Onkyo, kaip pagrindinis  jūsų namų kino sistemos centras, siūlo daugybę funkcijų, leidžiančių mėgautis aukščiausios klasės filmų, muzikos ir žaidimų turiniu. Keturios HDMI 2.1 įvestys palaiko iki 8K60 arba 4K120 skiriamąją gebą su dinamišku HDR, užtikrinančiu nuostabius vaizdus ir sklandų žaidimą. Muzika gali būti perduodama srautiniu būdu į jūsų garso sistemą arba namuose per dviejų juostų „Wi-Fi“ arba „Bluetooth“ ryšį per mobiliuosius įrenginius arba daugybę srautinio perdavimo paslaugų.

Techniniai duomenys :

Power Output per Channel: 1-Channel Driven: 165 W at 6 Ohms / 1 kHz / 10% THD 2-Channel Driven: 80 W at 8 Ohms / 20 Hz to 20 kHz / 0.08% THD
Dynamic Power per Channel: 160 W at 3 Ohms (Front) 125 W at 4 Ohms (Front) 85 W at 8 Ohms (Front)
Frequency Response: 10 Hz to 100 kHz +1 dB (Direct, Pure Mode)
THD+N: 0.08% (20 Hz to 20 kHz)
Speaker Impedance: 4 to 16 Ohms
Tone Control: Bass (20 Hz): ±10.0 dB Treble (20 kHz): ±10.0 dB
Audio Processing
DTS Compatibility: DTS Virtual:X, DTS-HD Master Audio, DTS:X
Dolby Compatibility: Dolby Atmos, Dolby TrueHD
Auro 3D Support: No
Upmixing Technology: DTS Virtual:X, Dolby Atmos Height Virtualization Technology
Video
HDR Compatibility: HDR10+
Pass-Through Support: 4K120p
Upscaling: None
GUI: Yes
Connectivity

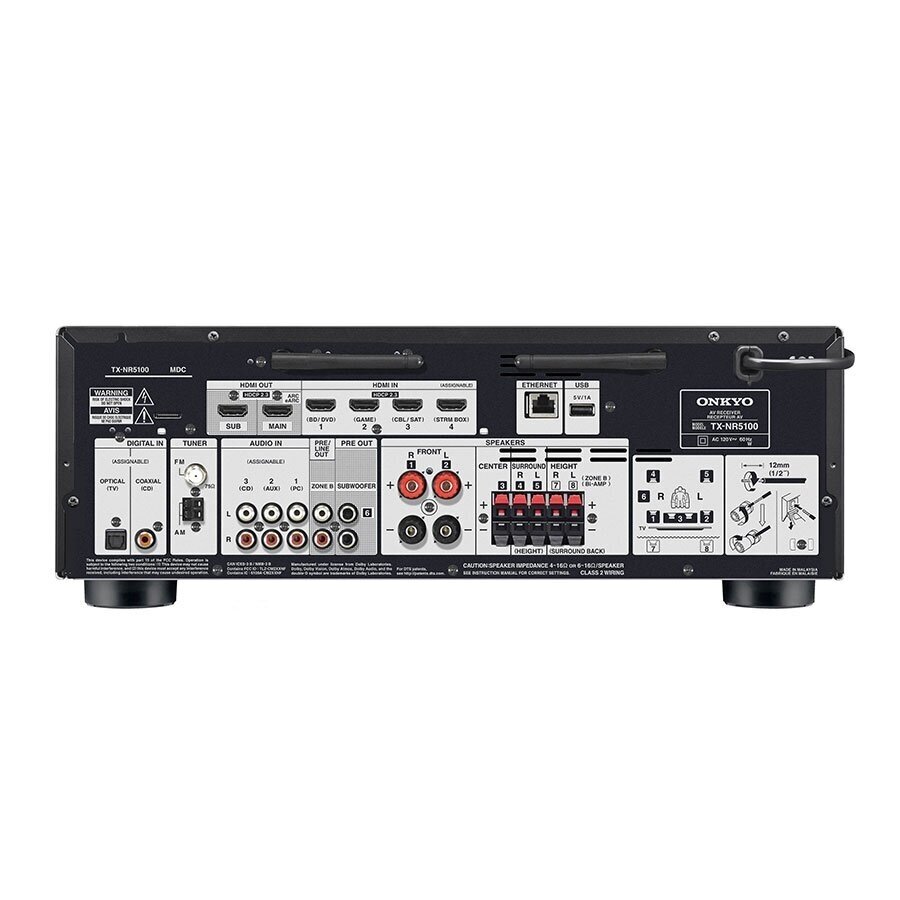

Rear A/V Inputs: 4 x HDMI 2.1 3 x RCA 1 x Digital Coaxial 1 x Optical TOSLINK
Rear A/V Outputs: 2 x HDMI 2 x RCA Subwoofer Pre-Out 1 x Stereo RCA Zone B Pre-/Line-Out
Front I/O: 1 x 1/4" / 6.35 mm Headphone Output 1 x 1/8" / 3.5 mm Setup Mic Input
Other Rear I/O: 1 x RJ45 (Ethernet) Input/Output 1 x USB Type-A (Power) Output 1 x FM Coaxial F-Type Input 1 x AM Block Input
Speaker Connectors: 5 x Spring Clip Pairs (Center, Height, Rear Surround) 2 x Binding Post Pairs (Front)
HDCP Support: Version 2.3
HDMI Compression Modes: 4K120AB / 8K60B
Audio Return Channel (ARC): ARC, eARC
HDMI CEC: Yes
Media Card Slot: None
Bi-Amp Capability: Yes
Input Impedance: Line: 32 Kilohms
Input Sensitivity: Line: 200 mVrms
Rated Output / Impedance: Zone B Line-Out: 1 Vrms / 2.2 Kilohms Zone B Line-Out: 200 mVrms / 2.2 Kilohms
Signal to Noise Ratio: Line: 106 dB (IHF-A)
Wireless Connectivity
Wi-Fi: Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz)
Supported Audio Codecs: AAC, SBC, aptX, aptX HD
Wireless Audio Protocols: AirPlay 2, Chromecast built-in, DTS Play-Fi, Roon Ready
Control
External Control Support: Android/iOS Control App
Virtual Assistant: Works with Alexa, Works with Google Assistant
Tuner Section
Tuner Type: AM, FM
Number of Tuner Presets: 40 Stations
Radio Frequencies: AM: 530 to 1710 kHz FM: 87.5 to 107.9 MHz
Power
AC Input Power: 120 VAC, 60 Hz
Power Consumption: Active: 490 W No Sound: 45 W Standby: 0.1 W
Physical
Dimensions (W x H x D): 17.1 x 6.3 x 12.9" / 435.0 x 160.0 x 328.0 mm
Weight: 18.5 lb / 8.4 kg
Packaging Info
Package Weight: 21.94 lb
Box Dimensions (LxWxH): 20.7 x 16.4 x 9.4"
